Steel Grating

Steel Grating,

Place of Origin: Hebei China (Mainland)
Material: low carbon steel, stainless steel plate,
aluminum, copper, nickel metal plate board, etc.
Weave Style: Perforated
Technique: Perforated
Model Number: Various Size

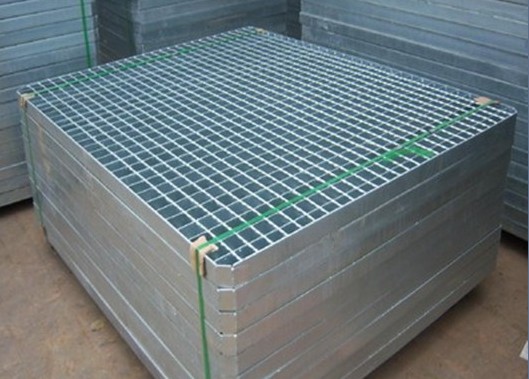

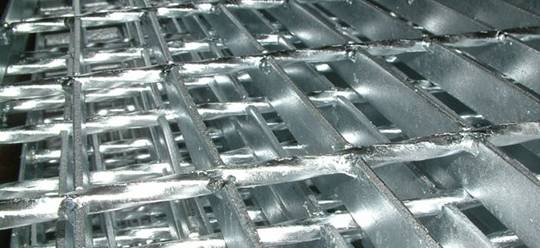

Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening,
edging and other processes. The products enjoy the features of high strength, light structure, high bearing,
convenience for loading and other properties. The hot dipped zinc coating gives the product excellent
anti-corrosion resistance.

Steel grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical,
power plant, waste treatment plant, civil engineering projects and environmental projects.
Can also be customized according to customer requirements

Specification list of Steel Grating

Series No。

Vertical
Bar
Spacing

Horizontal
Bar
Spacing

Specification of Supporting Flat Steel
Width X Thickness
(mm) 　(mm)

20×3

25×3

32×3

40×3

20×5

25×5

1

30

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100

50

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

2

40

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100

50

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

3

60

50

-

G253/60/50

G323/60/50

G403/60/50

G205/60/50

G255/60/50

32×5

40×5

45×5

50×5

55×5

60×5

4

30

100

G325/30/100

G405/30/100

G455/30/100

G500/30/100

G555/30/100

G605/30/100

50

G325/30/50

G405/30/50

G455/30/50

G500/30/50

G555/30/50

G605/30/50

5

40

100

G325/40/100

G405/40/100

G455/40/100

G500/40/100

G555/40/100

G605/40/100

50

G325/40/50

G405/40/50

G455/40/50

G500/40/50

G555/40/50

G605/40/50

6

60

50

G325/60/50

G405/60/50

G455/60/50

G500/60/50

G555/60/50

G605/60/50
